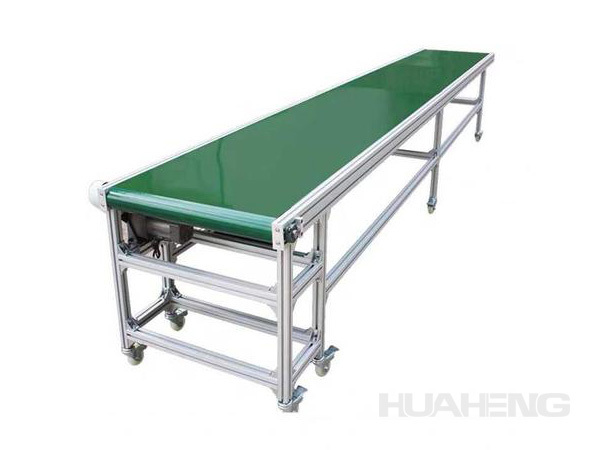

20m/Min ~ 60m/Min Conveying Equipment 60KG/Chest Belt Conveyor 2.2KW

• Belt conveyor
• It is used for material conveying between two machines and equipments. When there is a height difference between two equipments, the angle of the belt conveyor can be adjusted to realize climbing and downhill conveying.
• Performance characteristics:

• 1. the equipment structure principle is simple, smooth conveying, energy saving and environmental protection;

  2. Climbing belt conveyor is capable of continuous conveying of crates with high conveying efficiency;

  3. The head and tail of the equipment adopt modularized design, which is convenient for disassembly and maintenance;

  4. The electric control system monitors the operation of each transition part to further improve the stability of the equipment;

  5. Mechanical design for reliability, stability and other further optimization of the design, simple structure, low maintenance workload;

  Belt merging conveyor is a kind of belt conveyor with 30° or 45° connecting edges. This type of conveyor allows two conveyor lines to be merged at a corresponding angle. In combination with a sorting unit, the Belt Merge Conveyor can also be used to separate the conveyed material streams. The conveyor belts are available in widths of 90 mm and 40 mm, the latter being suitable for very small materials. The total height of the belt merge conveyor (120 mm) is very low.

  The advantages of high performance and trouble-free operation make them suitable for a wide range of applications. Turning conveyors are available in a wide range of widths, angles and weight classes.

• • Technical parameter:

  • lengths	500~10000mm
    height	200~800mm
    high degree	450~1500mm
    tempo	20~60m/min
    payloads	0~60KG/chest
    power supply	380V/3Ph/50Hz(default)
    Motor power	0.37~2.2KW
    climb a slope	Climbable at an angle of no more than 20°
    Belt Brands	Siglin (default)
    Bearing housing brands	Fushan Hardware (default), Dongguan Bearings
    Gear Motor Brands	SEW (default), Taiwan Wanxin, NORD
    environmental temperature	-10°~40°
